Yealink VC880 VC Room System


Full HD Video Conferencing System Designed for Better Collaboration

Yealink VC880, a full HD video conferencing system, is designed to maximize your collaboration experience with cutting-edge technologies. Equipped with the strongest embedded MCU within the industry, VC880 supports 24-site HD video conferencing; Moreover, the industry-leading multi-camera solution grants you to connect up to nine VCC22 video conferencing cameras and other accessories via an Ethernet cable and a PoE switch, getting multi-way and multi-view video conferencing as easily as you can. Owning the rich physical interfaces for audio and video connection, VC880 can be connected to the 3rd-party camera or access to the video matrix. In addition, it comes with the professional RCA-in/out interface that integrates the mixer with the gooseneck microphone. Yealink VC880 is with a split-type structure to meet the deploy requirement of the control room which separates from a large conference room. To minimize cable clutter and lower the cost, we combine three cables (power cord, video cable and control line) into one cable, giving you a clean and tidy work environment.


Spilt Type for Integration in Conference Room

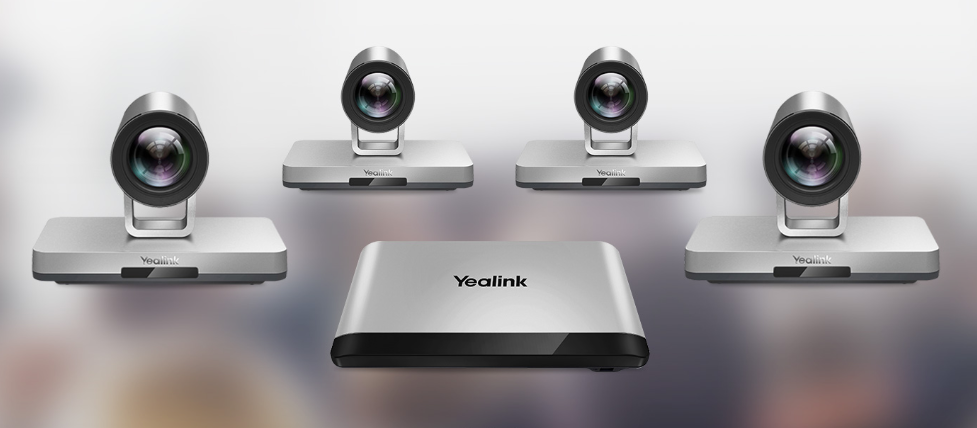

Spilt type, multi-camera solution (up to nine VCC22 cameras can be connected), only one Ethernet cable – are definitely optimized for the control room which separates from the conference room, helping you make deployment as easy as possible without costly room remediation. For multi-camera solution, only one PoE switch and an Ethernet cable are enough, skipping the complex video matrix and saving your time and cost. Support RCA-in/out and 3rd-party camera connection to make deployment simple and efficient.


3rd-party camera connection, Strong Compatibility

An exclusive HDMI interface permits the video input from the 3rd-party camera or video matrix, and you can put the video image both different cameras together like a puzzle, as well as change the video layout. Besides, coming with the profession RCA-in/out interface, VC880 perfectly integrates the mixer with the gooseneck microphone.


Compatibility and Integration

Yealink VC880 supports standard H.323/SIP dual-protocol. It is not only deeply integrated with Yealink Meeting Server(YMS), supporting Meeting Scheduling and One-touch Meeting Access; but also worked with Yealink Cloud Management Service, bringing quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms.


Better Network Adaptability

Thanks to Yealink anti-packet loss technology, VC880 can resist up to 30% video and 70% audio packet loss which guarantees smooth video and audio communication.
People Video Quality 1080P/60fps
Content Sharing Video Quality 1080P/60fps
Camera Model VCC22(optional)
Image Quality 1080P/60fps
Zoom 12× optical zoom
Field of View 70°
PTZ
Pickup Equipment Model VCS Phone CP960(optional)
Pickup Mic 3
Expansion Mic 2
Speaker
LCD Screen
Dial Key
Mute Key
Voice Pickup Range 6 metres
Built-in MCU's Capacity 24 sites
Built-in MCU's Resolution 24 sites at 1080P
Additional One-way Audio Call
Standard Communication Protocol H.323/SIP
Dual Stream Receive&Send
H.264 HP Codecs
HD Recording
Intelligent Firewall Traversal
HDMI Output 2×HDMI
Camera Input 1×HDMI
Input for Content Sharing 1×HDMI + 1×Mini-DP(optional)
Line-in 1×RCA
Line-out 1×RCA
USB 3×USB 2.0
Power Adapter 48V/0.7A
